Machining
Our machinery

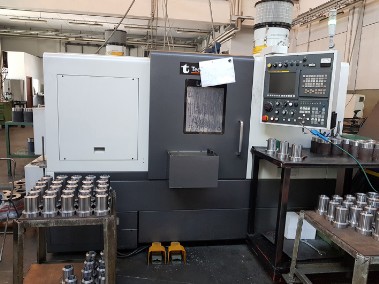

CNC horizontal lathe Takisawa LA-
Working range: Ø420 x 734
Bar capacity: 75

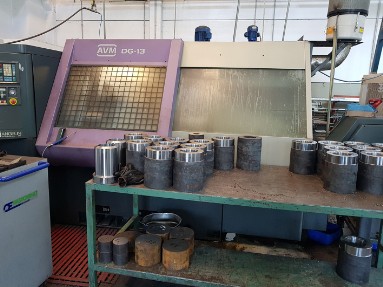

CNC AVM DG13 lathe
Bar capacity: 90
Revolution number: 3000
Stroke: 800 (z) x Ø430mm
N. 2 CNC Quaser MV-
Max weight chargeable on the table: 500kg
Working range: 1020(x) x 610(y) x 601(z)
Mandrel revolutions: 12.000

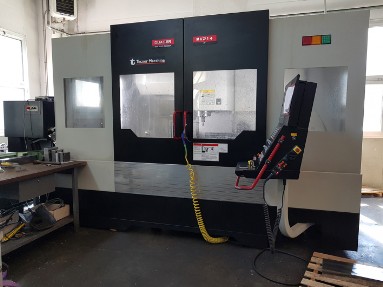

Quaser MV-
Max weight chargeable on the table: 18000kg
Working range: 1500(x) x 800(y) x 601(z)
Mandrel revolutions: 12.000

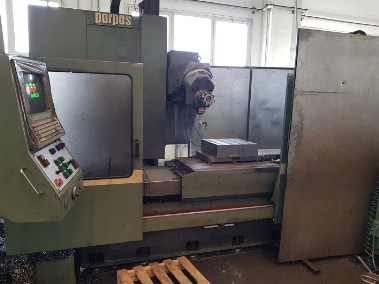

Parpas SL60 milling equipped with Selca 3045 CNC
Table dimensions: 1930x620
Axis stroke: 1600x750x1050
Mandrel revolutions: 3000
Head: manual twice-
turning

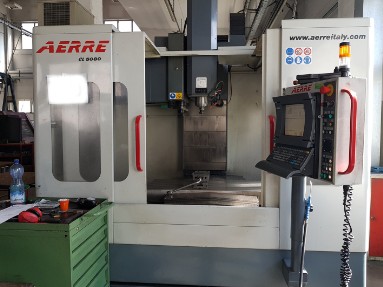

AERRE CL4040 machining centre
Max. mandrel speed: 15000 Rev/Min
Axis stroke (mm): X=900, Y=500, Z=600
Fast axis speed: 30 Mt/Min

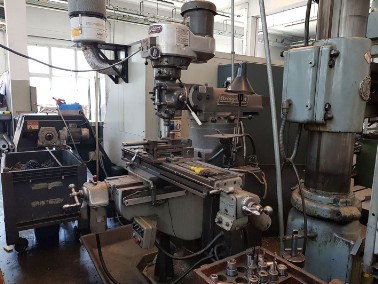

Milling

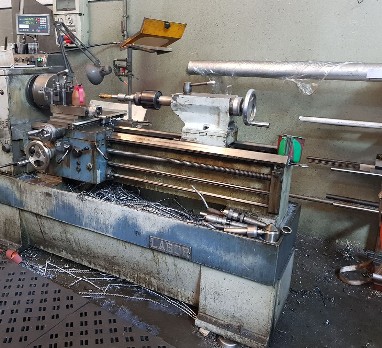

Horizontal turning machine

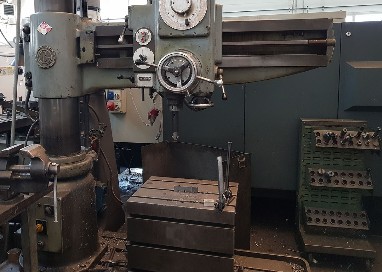

Radial drilling

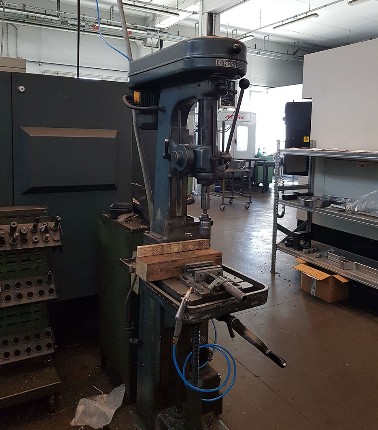

Pillar drilling

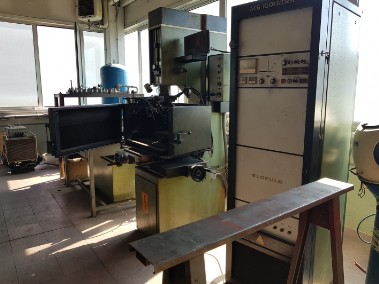

Plunge Electrical Discharge Machining AGIE
Plunge EDM reproduces the shape of a tool, called electrode, in a metallic piece shape.
The injection mold for the plastic pieces are machined by plunging.
The shape given by the electrode is the one of the molded object.
Each diascharge in the machining area creates a hole in the piec (mateiral removal) and an impact on the tool (wear of the electrode tool).
There is never mechanical contact between the electrode and the piece. The electrode is often made of copper or graphite.

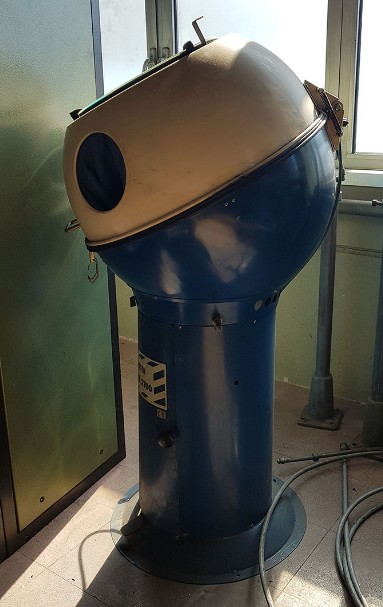

Drester 2700 Sand blasting machine
Inner dimensions : 600 x 500 x 600 mm
Working pressure: 6 bars
Approx. weight: 50 kg

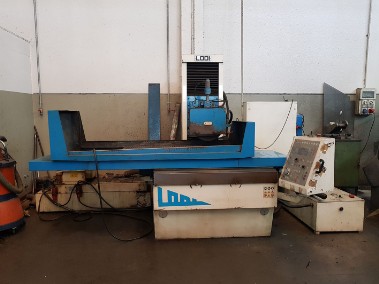

Lodi T100CN edge wheel grinding machine
Grinding volume: mm 1200 X 600 H 400
Max weight chargeable on the table: kg 300
